The pharmaceutical industry faces increasingly intense economic pressure. Not only are new chemical entity (NCE) submissions to regulatory bodies at a 20-year low, but the demands for yet more stringent regulation — alongside the continuing squeeze on revenues as patents expire and generic formulations appear on the market — present significant challenges.

Manufacturers are responding in a number of ways with two clear objectives emerging: the need to reduce production costs and the time it takes to get the product to market. In the past, pharmaceutical manufacturers have to some extent escaped the strong pressure on variable costs faced by other industries, such as bulk chemical producers. As a result there has not been the need to focus on process efficiency to the same degree.

Patent protection coupled with the rigours of process validation, which has made the introduction of new technologies during scale-up unattractive, has resulted in processes that generate the required material, but not necessarily in the most cost-effective way. The need to change this situation is now being recognized. One clear sign is FDA's process analytical technology (PAT) initiative, which is designed to encourage pharmaceutical manufacturers to embrace new analytical technologies to monitor and control their processes more closely. It is hoped that this approach will reduce risk and enhance process efficiency.

Development and optimization of a product and its manufacturing process are iterative rather than linear procedures. An approach in which the product and process are developed in tandem will lead to optimized production much more rapidly.

However, this type of development relies on gathering process-relevant information at a relatively early stage. There is, therefore, a need for analytical systems that can deliver this data in a cost-effective manner using only small amounts of material. In this article we discuss the use of powder rheometers in this context.

Powder behaviour is complex and not fully rationalized in terms of basic particle properties. It is tempting to think of powder systems as being single phase, but two-phase is a more accurate description because air content is such a significant variable. A stable tablet after all is simply a free-flowing powder mixture that has been pressed to exclude air and encourage cohesion.

Powder properties are related to physical properties such as particle size and shape, but other factors are also significant. Aeration or consolidation, the uptake of moisture, segregation and attrition, can all occur during processing, transforming the way that the powder behaves.

 The powder processor's expertise lies in manipulating variables to achieve the required result, but this can be a trial and error process in the absence of analytical data that can accurately reflect processing performance.

Traditionally, process development has relied heavily on the experience of key personnel. In addition, processes have been run under manual control with operators developing a 'feel' for the material and plant — pragmatic solutions based on pulling certain levers to solve certain problems.

To move away from this approach to one more firmly rooted in technical understanding, intuition and experience must be translated into measurable variables that can be correlated with process performance. If this can be achieved, then the efficiency of both process development and operation can be improved substantially.

In almost all pharmaceutical products either the active pharmaceutical ingredient (API) or excipients will be handled in solid form at some point, and, therefore, effective powder processing lies at the heart of optimized pharmaceutical production.

In terms of unit operations, core activities include reaction, homogenization/micronization, blending, drying, granulation, pressing and coating. Batch production is the norm, primarily because of the need for stringent quality control (QC).

"When designing new processes or deciding whether a new product will process well in existing equipment, what powder property information will be valuable?"

With blending, the aim is to efficiently produce a fully homogeneous mix. Demands on blending processes are increasing as the trend towards lower doses of more active APIs continues. A commonly encountered problem is that blending equipment that works well for a certain set of powders may not perform adequately for others.

In this case assessing the way that materials flow and the sensitivity of flow behaviour to different variables can help developers to match material characteristics with processing equipment capability.

If the characteristics of powders that blend well can be quantified then materials with very similar flow properties can be developed, and confidence that they will process relatively easily will be high.

Drying is also a common unit operation, but it is often relatively poorly controlled. Knowing the sensitivity of a material to moisture will allow assessment of the likely impact of varying water content on downstream processes, such as tabletting; here excessive moisture can exacerbate the problem of picking, whereby material adheres to the machine resulting in an imperfect tablet.

  The effect of water content on sample rheology is also relevant in the development of successful wet granulation processes. Granulation is often used to improve the flow properties of a material, for handling and/or downstream processing reasons. If the properties of a granulate can be correlated with water content and blend time on the one hand, and subsequent processability on the other, then optimization of the granulation process, successful end-point detection and scale-up become much more straight forward.

The properties of all powders are extremely sensitive to air content and materials differ significantly in terms of the way in which they both entrain and release air. Quantification of the impact of air on the properties of a given sample is, therefore, valuable for powder processors, particularly for specific unit operations. For example, in a tabletting mix air facilitates free flow of the material into the die, but if this air is not released quickly then it will be compressed along with the powder.

If this happens the resulting tablet may laminate or split as the trapped air is released upon removal of the compression pressure. Measuring the ability of a material to deaerate allows prediction of this important aspect of tabletting performance. Aeration effects are also responsible for other widely observed processing phenomena, such as flooding of a feeder.

It is easy to recognize that some unit operations, for example, those using fluidized beds, clearly involve aeration. The critical point that is less well-understood is that even when aeration is not a specified part of the process it can occur all too easily.

Powders mix with air as they are discharged from hoppers or during pneumatic conveying and tend to deaerate whenever they are stationary. The dependence of powder properties on air content is, therefore, an aspect of powder behaviour that must be considered carefully by all powder processors.

These simple examples underscore the link between the properties of a proposed formulation and aspects of process design and operation. It is clear that data collected at an early stage, which provide understanding of the basic properties of the material, can help formulators steer away from a poor product, and guide process engineers to focus on their design efforts.

Angle of repose, flow through a funnel or aperture and bulk density measurement methods, such as Carr and Hausner, are all established techniques for assessing the properties of powders.

Each provides some insight into a certain aspect of powder behaviour. The percentage compressibility function developed by Carr, for example, which is based upon measurement of the change in volume induced by repeated tapping, differentiates well between cohesive and free-flowing powders.

Shear testing, as initially developed in the 1960s by Jenike, is also used widely for the characterization of various aspects of, primarily, cohesive powders, such as cohesion and compression strength. There is a well-developed design methodology based on these parameters for hoppers and bins, and the information gained using this technique continues to expand with the development of modern instruments that allow determination of the shear strength of unconsolidated powders as well as preconsolidated powders.

Powder rheometers are a much more recent development designed to quantify how powders flow in ways that more closely relate to their behaviour in real processes. They describe the dynamic flow properties of powders in terms of the energy needed to cause flow.

Powders are tested dynamically by measuring the force and torque required to rotate a blade through the sample in a specific manner. Rotating the blade downwards through the sample produces a bulldozing action along the blade length, whereas upward movement induces shear with minimum consolidation.

These regimes deliver different, complementary sets of rheological data. In the absence of a unit of dynamic flowability the behaviour observed is described in terms of the energy needed to maintain the prescribed flow pattern, which is calculated from the force and torque measurements.

A key feature of powder rheometers is that a sample can be conditioned prior to measurement and gently moved to ensure that the sample bed is laid down for testing in a repeatable way. This conditioning step eliminates a significant source of variability associated with other measurement techniques and ensures high repeatability.

Differences in measurements made using a powder rheometer are a function of real powder properties not powder history. Furthermore, the dynamic measurement methodology involved is highly differentiating. These two properties combine to make powder rheometers particularly sensitive to small differences in flow properties.

Universal powder testers that can measure the bulk, shear and dynamic flow properties of powders for a full range of packing conditions have evolved from the first powder rheometers. The original concept of measuring the energy needed to cause powder flow has been extended to include automated assessments for all flow regimes — consolidated, conditioned (unstressed) and aerated or fluidized powders as well as bulk density, compressibility and permeability measurement, and shear cell modules to determine shear strength properties.

To illustrate the relevance of powder property testing, samples of four different types of lactose, a commonly used excipient, were investigated using a universal powder tester (as described before) to determine bulk and flow properties using both the dynamic and shear methodologies.

The bulk powder properties of compressibility and permeability were measured and the adhesive properties of the materials were assessed, by measuring the amount of material adhering to the blade following dynamic tests. Four types of lactose were used: spray-dried, sieved, coarsely and finely milled. Particle size and shape data for the samples are shown in Table 1.

The much higher compressibility of the finely milled lactose is a clear indication of its higher cohesivity and this is reinforced by the adhesion data, which show that this powder is, by a significant margin, the most adhesive of the materials tested. Both characteristics are important and in the case of finely milled lactose, the high values indicate that difficulties should be expected during processing

Figure 1 shows yield locus data, measured in the shear tests, for each of the samples. The finely milled lactose exhibits higher shear strength than the other materials, which have larger particles and tend to flow more freely. The spray-dried lactose has the lowest value of all, probably as a result of its spherical shaped particles.

Figure 1 Yield strength loci for varying normal stress levels for powders previously preconsolidated to 9 kPa stress.

For the finely milled lactose it was possible to extrapolate the yield loci and use a Mohr's circle analysis to derive the unconfined yield strength, maximum principal stress and flowability. This analysis was not possible with any accuracy for the less cohesive materials as their extrapolated yield loci were close to passing through zero.

Flow energy measurements for the different lactose samples determined using dynamic tests are presented in Figure 2.

Figure 2 Dynamic flow energy measurements for seven identical tests followed by four tests at reducing blade speed.

Repeatability is good, highlighting the stable rheology of the samples. A wide range of flow energies is measured reflecting the rheological differences between the types of lactose; marked differentiation between materials is evident.

Any method of comparing flow properties would show differences between the cohesive, finely milled lactose and the other three coarse grained powders. However, this specific ability to differentiate between very similar powders is most important to the powder processor, especially when faced with issues of batch-to-batch variability.

Interestingly, the finely milled lactose is associated with the lowest flow energy even though it has the highest shear strength. The compressibility, permeability and adhesion data for the samples shown in Table 1 helps interpretation of the flow energy measurements. Cohesive powders such as the finely milled lactose tend to contain relatively large amounts of air and are far more easily compressed. As a result the flow zone of material — the numbers of particles moving at any instant as the blade rotates and, therefore, the energy required to maintain flow — tends to be relatively small. In contrast, for noncohesive materials relatively large amounts of the sample are moved simultaneously as the blade is rotated and a higher flow energy is seen. These results highlight the dependency of flow energy measurements on a range of factors, not only shear strength, but also cohesion, compressibility and physical properties.

Table 1 Properties of lactose samples.

Changes in flow energy induced by aeration are evident from Figure 3. It is clear that aeration has a much more significant impact on the flowability of the coarser lactose samples than on the finely milled material. The coarsely milled and sieved lactose in particular show a rapid rate of flow energy reduction even at relatively low air flow rates because of separation of their large, angular particles.

Articles

Formulation

The trend towards developing pharmaceutical products and their manufacturing processes in tandem supports optimized production. Such developments rely on gathering process-relevant information at an early stage and being able to draw on past and current processing experience. Here, we discuss how powder rheometers can make a real difference in building a database of powder properties and removing subjectivity.

Understanding powder behaviour by measurig bulk, flow and shear properties

Clean rooms are critical areas in bio/pharma facilities, and it is essential that users are responsible for their care and upkeep, and familiarize themselves with the relevant regulations.

Clean rooms make aseptic processing possible. FDA prefers parenterals to be terminally sterilized, but when that is not possible without affecting the product, the agency allows aseptic processing

 of terminal sterilization. When a medical product is ingested, any live organisms in the drug may die before reaching the bloodstream because of the body's defence mechanisms, such as saliva and stomach acid.

Parenterals, however, bypass some of these mechanisms and must, therefore, be manufactured under cleaner conditions. Airborne particles need to be controlled to reduce the possibility of contaminant particles entering the medicinal product and ultimately, the patient. Reducing the number of airborne particles in a clean room decreases the possibility of larger particles carrying bacteria and viruses.

ISO 14644–1 (which defines clean rooms) and ISO 14644–2 (which specifies requirements to prove compliance with ISO 14644–1) have been in force for many years.

  European countries have incorporated these standards, whilst in the US, ISO 14644–1 and ISO 14644–2 replaced Federal Standard 209.

Section 2.1.1 of ISO 14644–1 defines a clean room as "a room in which the concentration of airborne particles is controlled, and which is constructed and used in a manner to minimize the introduction, generation and retention of particles inside the room, and in which other relevant parameters, for example, temperature, humidity, and pressure, are controlled as necessary". Table 1 shows the relationship between ISO 14644–1 definitions of a clean room, and FDA and European Commission (EC) requirements for facilities that use aseptic processing. Before ISO 14644–1 was adopted, clean rooms were defined in the US in simple terms such as a class 100 clean room.

Section 3.3 of ISO 14644–1 states that the clean room designation should be based on three parameters:

classification number expressed as an ISO class

 particle sizes and their related concentration.

For example, the proper definition of what was once a class 100 clean room is now ISO class 5; operational state; particle size 0.5 μm; 3520 particles/m

Although ISO 14644–1 defines clean rooms for various particle sizes ranging from 0.1–5.0 μm, in bio/pharma facilities, we are mostly concerned with particles greater than 0.5 μm. Bacteria are not usually found in the air as unicellular organisms, they are normally carried on materials such as skin particles, with an average size in the air of 10–15 μm. Small inanimate particles have a low deposition rate and little chance of entering containers from the air in sufficient numbers to be a problem.

  Standard ISO 14644–1 classifies  clean rooms only in terms of "particles per cubic meter" without differentiating between viable and non-viable particle count. US and EC GMPs is where the acceptable number of viable particles per cubic meter may be found.

Guideline on Sterile Drug Products Produced by Aseptic Processing

 was the original document that defined clean rooms.

  It defined only two types of clean rooms — critical (class 100) areas where sterilized items are handled and controlled (class 100000) areas where unsterilized items are handled.

 Table 1 Environmental requirements for sterile medicinal products.

This guide was replaced in September 2004, with the new guideline containing some notable additions:

 Sterile drugs should be manufactured using aseptic processing only when terminal sterilization is not feasible.

 The classification rates clean rooms in particles/m

  and states their ISO class number. It also adds viable particle counts using microbiological settling plates in addition to the original air sampling method.

 "Controlled" classification has been replaced by "supporting clean areas" for areas handling unsterilized items. Under this definition, class 1000 and class 10000 as well as the previously mentioned class 100000 areas have been added.

 An air flow rate of 20 air changes per hour (AC/h) is still expected for class 100000 (ISO 8) clean rooms, but the rate is not specified for class 1000 or class 100000 clean rooms.

 Poly-alpha-olefin (PAO) was used as an alternate aerosol to dioctylphthalate (DOP) for filter integrity testing of high-efficiency absorbency (HEPA) filters.

 Filter scanning for HEPA filter leak testing should be conducted at a position about 2 in. (50 mm) from the face of the filter.

 For HEPA filters in the critical (sterile) area, the air velocity is measured 6 in. (150 mm) from the filter face or at a defined distance close to the work surface.

 The particle count during filling/closing operations is still taken no more than 305 mm away from the worksite, within the air flow.

 Written standard operating procedures (SOPs) for microbiological environmental monitoring should address elements such as alert and action levels.

 Blow-fill-seal applications should be performed in class 100000 (ISO 8) rooms or cleaner, and that the critical zone should meet class 100 (ISO 5) particulate and microbiological standards.

 Procedures for aseptic connections, which expose a product or product contact surfaces, should be performed under unidirectional airflow in a class 100 (ISO 5) environment, in a class 10000 (ISO 7) or better room.

 States that drains are considered inappropriate for classified areas of the aseptic processing facility, other than Class 100000 (ISO 8) areas.

 Pressure differential between rooms of different classes should be 10–15 Pa, and 12.5 Pa between a classified and nonclassified room.

Annex 1 of the EC good manufacturing practice (GMP) guide

 defines clean rooms in terms of grades (namely grades A–D). Annex 1 also addresses two particle sizes (0.5 and 5.0 μm) and two occupancy states (operational and 'at-rest') and says: "The particulate conditions for the 'at rest' state should be achieved in the unmanned state after a short clean-up period of 15–20 minutes". A room may have two ISO class numbers depending on the room's occupancy state.

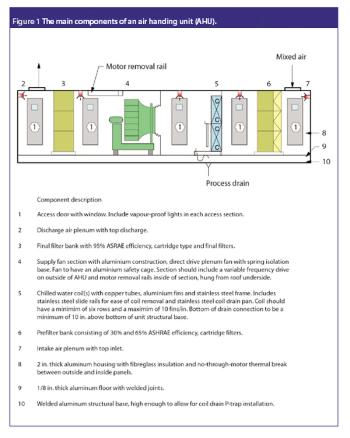

Figure 1 The main components of an air handing unit (AHU).

For example, a grade B room is equivalent to ISO class 7 (352000 particles, size 0.5 μm/m

 ) in its operational state and ISO class 5 (3520 particles, size 0.5 μm/m

Annex 1 was updated in 2003, which contains some additions worth noting:

The 'in operation' and 'at rest' states should be defined for each clean room or suite of clean rooms.

  or larger for grade A zones, both 'at-rest' and in operation, as well as for a grade B zone 'at-rest'.

 The air velocity for a grade A area from 0.45 m/s ± 20% was replaced by a range of 0.36–0.54 m/s at the working position in open clean room applications.

 References to the old US Federal Standard 209 were removed.

 Terminal (ceiling) HEPAs should be provided for Grades A, B and C. This is very important because before this EC Guideline update, HEPAs for Grade C could have been located inside the AHU, but not any more. This now makes Grade C rooms more expensive to build.

Classifying an entire facility class A (ISO 5) would ensure product purity, but doing so is unnecessary and too expensive. Table 2, which shows recent trends in the biotech industry, relate clean room classifications to various manufacturing operations, based on an operational state (when the product is actually being manufactured).

Some of these classifications are fixed (e.g., for ISO class 5, grade A is required where sterilized items are exposed to room air), while others may vary depending on the contamination risk assessment by manufacturers. For example, downstream purification is sometimes performed in grade B clean rooms while at other times grade C suffices. The potential of product contamination is reduced by minimizing the number of particles in the clean room.

Table 2 Air classification for various bio/pharma aseptic manufacturing steps and rooms.

This reduction is the first step in cleaning the supply air. However, outside air is required to satisfy personnel ventilation, room exhaust-air requirements and for positive air pressurization. A cubic foot of untreated outside air in an average industrial area could contain as many as 1200000 particles of size 0.5 μm and larger.

The maximum allowable particle counts in clean rooms varies from 100–100000 particles/ft

 though clean rooms have a number of systems (including air handling units [AHUs] and HEPA filters) to ensure the air supplied will be cleaner than required.

Another potential external source of contamination is the AHU and the ductwork distributing the conditioned air (Figure 1). Typical AHU construction includes aluminium interior panels with welded joints at the floor; cooling coils with stainless steel coil frames (that prevent rust); easy-to-clean direct-drive plenum fans (to eliminate the possibility of particles from fan belts entering the air stream); an access section between each AHU component (filter, fans, coils); and a covered floor drain at each access section.

Clean Rooms

Clean rooms are critical areas in bio/pharma facilities, and it is essential that users are responsible for their care and upkeep, and familiarize themselves with the relevant regulations.

Keeping clean rooms compliant
