	For drug manufacturers, patient safety is of the utmost concern, and efforts to prevent cross-contamination with highly potent active pharmaceutical ingredients (HPAPI) are a crucial part of a safe manufacturing process. Likewise, the safety of workers who make APIs or finished drug products, and the environment in which they work, is also paramount, particularly when manufacturing with compounds that require high containment. Inadequate containment of these compounds can put patients, employees, and the environment at increased risk, while decreasing product yields.  Manufacturing costs can also rise with additional requirements for personal protective equipment and medical surveillance for workers, or for pollution controls and special housekeeping for manufacturing areas.

	To ensure that employee exposures are kept within accepted limits and to protect the environment while containing costs, pharmaceutical companies and their contract partners who manufacture and handle high-containment compounds must carefully select equipment, outline processes and procedures, and deploy appropriate containment technologies.

	Applying engineering controls in the manufacturing process reduces the risk of contamination of the manufacturing environment and is the preferred method of controlling employee exposure. Occupational hygiene monitoring techniques and methods of analysis can then be used to verify the performance of the engineering controls.


	The first step in avoiding HPAPI environmental contamination is to identify the exposure potential. Factors to be considered include the quantity of material handled and the percent active, the potential for dust, and the duration of the task. Small (gram) or medium (kilogram) quantities of API with low dust potential and a short duration (minutes) would have the lowest exposure potential, while high volume (ton), high-dust potential with a long duration (hours) provides the highest exposure potential.

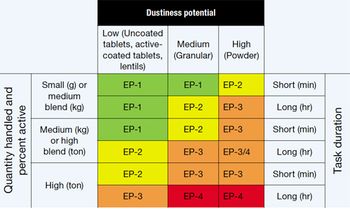

 illustrates the selection of exposure potential from lowest (EP-1) to highest (EP-4).


	Once the exposure potential and containment level is determined, a control approach can be selected. AbbVie Contract Manufacturing uses a four-tier containment band and five containment strategies to guide its containment controls (see

). The containment band runs from 1S ( > 100 mcg/m

). These bands are related to employee exposure limits (EEL). For example, two compounds with an EEL of 2 and 7 would both fall in containment band 3 at AbbVie, and be handled in the same manner.

) range from the least restrictive-open transfer with general ventilation-to the most restrictive, which involves glovebox isolators with rapid transit ports (RTP), split butterfly valve with extraction and/or liquid rinse, a Hicoflex (GEA) transfer system, and a closed or dust-tight system with closed transfer. The containment strategy that is chosen is verified with environmental health and safety (EHS) personnel prior to selection of the containment equipment and technologies to be used.


	Once the exposure potential is identified and a containment strategy selected, the equipment and technologies used to manufacture the HPAPI must be selected. Factors to consider include the materials or compounds involved, the processes being used, environmental and safety considerations, and GMP requirements. A risk-based approach should be applied when selecting the type of containment strategy to use for a particular process. In general, the approach should consider the exposure limit, percent active, quantity, task duration, and material properties such as dust potential.

	It should be noted that employee exposure limits (EELs) are not standard, as they are established by consensus guidelines, various regulatory authorities worldwide, and individual manufacturers’ internal standards. These limits and levels apply to manufacturing facilities and pilot plants, as well as any laboratories handling certain containment levels.


	Factors that can affect the worker and the environment include the physical characteristics of the highly active or highly potent compound, such as its cohesion. A granular, dense compound that is more prone to clumping may be much easier to contain than a light, fluffy one. The material’s form, whether liquid, solid, vapor, or gas, affects the choice of containment control strategies, equipment, and processes, as does the particulate size, adhesion, and viscosity qualities. Nanomaterials, high adhesion, and dusty materials are more difficult to contain. Other chemical characteristics to evaluate include the compound’s flammability, combustibility, reactivity, and explosivity.


	Containment strategies must consider whether the process used involves direct or indirect handling or limited or repetitive handling, as well as the number of transfer steps. Processes should be designed with a minimum number of transfer points or make/break connections, to limit operator exposure. Other considerations include product sampling requirements such as size, quantity, location, container type, and any limitations of the receiving lab. Manufacturers must anticipate and account for any in-process adjustments and visibility issues, including tooling changeovers, equipment malfunctions, equipment inspections, line clearance to remove product for the next batch, and visibility to inspect material flow.


	Standardization of types and sizes of valves and containers, and compatibility with upstream and downstream processes also contribute to containment strategy selection. For cleaning, determine whether a process is dedicated or not, which cleaning materials will be used for deactivation, and which cleaning methods--manual, wash in place, clean in place, or a combination--will be used. Ergonomics is another factor in equipment selection; accessibility to valves and the ability to clean equipment or make adjustments help determine the best choice.


	For pharmaceuticals in the environment (PIE) control, the data generated from environmental risk assessments of products can provide the knowledge to make intelligent, risk-based control decisions for cost-effective manufacturing. Studies of predicted no-effect concentrations for the APIs involved allow manufacturers to identify water-quality control technology for the predicted environmental concentrations in the vicinity of the manufacturing facility. AbbVie’s goal is to keep site effluents tenfold below the no-effect concentration, on top of containment measures; therefore, the company has implemented effective segregation of concentrated streams and, where needed, state-of-the-art design of specific wastewater treatment for manufacturing facilities.


	Having standards in place for engineering controls is the first line of defense against harm from cross-contamination or exposure to the patient, manufacturing employees, or the environment when working with HPAPIs. These standards must take into account and guide the selection of equipment, processes, and technologies used to contain HPAPIs. While such standards are not set by industry, each manufacturer should have practices in place to handle HPAPIs without adverse effects.


	Olindo Lazzaro is Director, Environment, Health, and Safety, Global Manufacturing Operations at AbbVie,

:
	When referring to this article, please cite it as O. Lazzaro, "Choosing Containment Strategies For Highly Potent APIs,"

Articles

Troubleshooting

Safe handling of HPAPIs requires determining exposure potential and selecting appropriate containment strategies.

Choosing Containment Strategies For Highly Potent APIs

	INTERPHEX 2016 (April 26–29, New York, NY) featured more than 100 first-time exhibitors. Many of the newcomers displayed packaging innovations for serialization, solid-dosage forms, and parenteral products.


	Laetus, a familiar name in machine vision, simplifies the transition to serialization, shortens integration time, and reduces the capital investment with its MV-50

 standardized serialization solution. Requiring only 18 inches of line space, the system fits on most packaging lines. The system transports cartons for printing by a continuous inkjet printer. The software accepts serialized data from an upper level system or memory stick and transmits the codes to the printer and camera so the camera can confirm code correctness and print quality. A fail-safe rejection system prevents cartons with incorrect or poorly printed codes from proceeding down the line.

	Another first-time exhibitor that supports serialization, Nutec Systems, demonstrated a single BlackBox controller capable of managing multiple print technologies for serializing at the unit dose, label, carton, and case level. The same BlackBox system can also control multiple vision-inspection systems including smart sensors to detect print presence or perform pattern matching or a smart camera for print character and code verification. Customized systems can be supplied with Nutec’s Track & Trace software and cheQAssure Quality Assurance Software Suite for use with GS1 codes.

	Ellis Paper Box produces metallized, folding cartons with mirror-like, Fresnel lens patterns. The company also produces conventional cartons with anticounterfeiting features such as cold foil, a coin-reactive strip for authentication, two-dimensional DataMatrix code, serialization, micro type, pattern coating, and radio frequency identification (RFID) tags. RFID tags interact with a Smartphone to display information such as a patient insert in a specified language or enable the consumer to contact the brand owner directly. “A QR code can’t be changed, but an RFID message can be,” Steve Kerr, senior account manager, Ellis Paper Box, explained in an interview on the show floor. The company also can tip (attach) inserts to the interior of the carton, emboss Braille messages, add tamper-evident devices, and apply electronic article surveillance tags.

	Holo-Technologies offers three layers of security: one for end users; one for distributors, which is authenticated with ultraviolet light; and one for the brand owner, which is verified with a microscope. Its substrate, metallized polyethylene terephthalate film in gauges from 25–250 mils, can be laminated to paper or paperboard, and features difficult-to-duplicate technologies such as bas-relief, microtext, nanotext, 3D animated image, laser-etched barcoding, embossed light diffraction patterns, and microswitch effects, where the message changes as the viewing angle shifts. A tamper-evident security seal also is available.

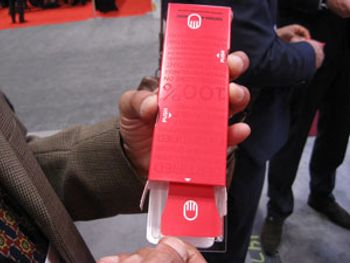

	Offset push tabs unlock access to blister packs in a child-resistant/senior-friendly carton from Locked4Kids. The design, which is available for licensing, can be produced by any carton manufacturer and loaded on standard cartoning machines. As a result, “No new machines are needed, and a brand owner can use its own [carton] supply chain,” Sanjeet Saxena, director Business Development at Locked4Kids told
